Leica Autostainer XL ST5010 Specifications

Instrument Functions

• Compact and efficient H&E autostainer which can stain up to 200 slides per hour


• Can stain over 150 slides per hour with typical H&E protocols

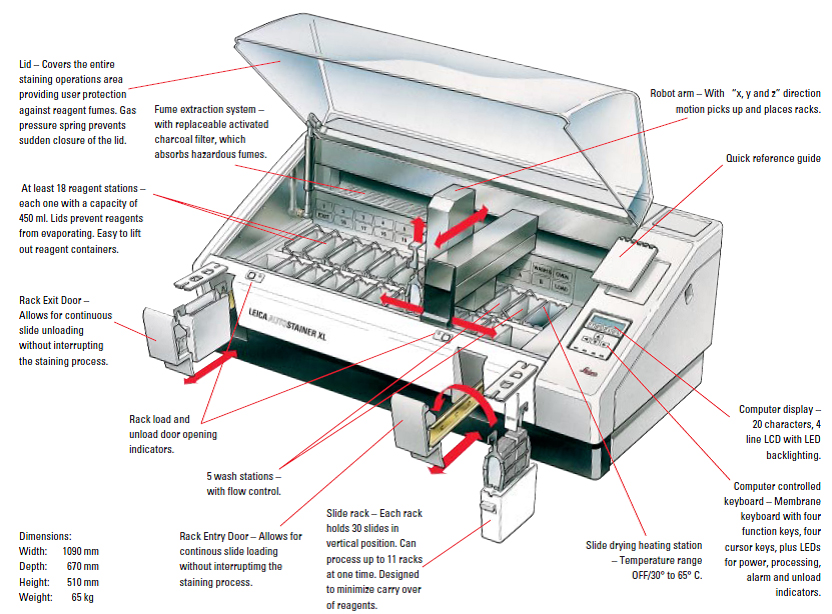

• 18 reagent stations 5 wash stations and an integrated forced hot air oven that significantly reduces slide drying time


• Simultaneous staining of up to 11 racks (30 slides/rack) using several different protocols - selecting any compatible
  program for each rack
• Continuous load/unload drawer access and robot arm system allows users to continue slide processing without interrupting
  instrument's operation
• Stainless steel robot arm moves accurately and quietly with precision on the x, y and z direction motion axes to process the
  slide racks
• Reagent containers can be exchanged and/or refilled quickly and easily


• Incubation times and sequence of use for reagent stations is independently programmable


• Agitation of individual slide racks is fully programmable from no agitation to continuous agitation


• Easy to use menu and microprocessor controlled


• 15 programs can be stored in memory each with up to 25 steps


• Staining programs can be terminated at any reagent and racks can be removed prior to completion of the staining protocol


• Integrated program recognition where the autostainer will not start a stain protocol that it is incompatible with another stain
  protocol already in progress


• Programming flexibility allows a stain protocol to begin or end in any station and move in any station sequence that
  maximizes utilization of the instrument


• Water saving feature which stops the flow of water if none of the wash stations is in use


• Minimized exposure to hazardous fumes with the integrated fume containment hood and extraction fan with integral charcoal filter


• PC access for fault diagnosis by service engineer

Technical Data

• Specimen slide throughput:


• Minimum of 200 slides/hour


• Maximum of 600 slides/hour


• Loading Capacity:


• 11 slide racks


• 30 specimen slides/rack


• Total number of processing stations: 26


• Reagent Stations: at least 18


• Reagent container volume: 450 mL


• Number of wash stations: maximum of 5


• Oven: 1


• Oven chamber temperature: off or 30-65C


• Incubation time setting: from 0 sec. up to 99 min.,59 sec.


• Load/Unload stations: 1 each


• Permanent memory capacity: 15 programs with up to 25 steps in each


• Dimensions(WxDxH): 109cm x 67cm x 51cm


• Weight: 65kg/143lbs
